These are my hand-written lectures notes for the rest of Chapter 2.
Click on the small page to get a full-sized version, eh:
1.
Begin K-maps
![](page01_small.jpg)
|
2.

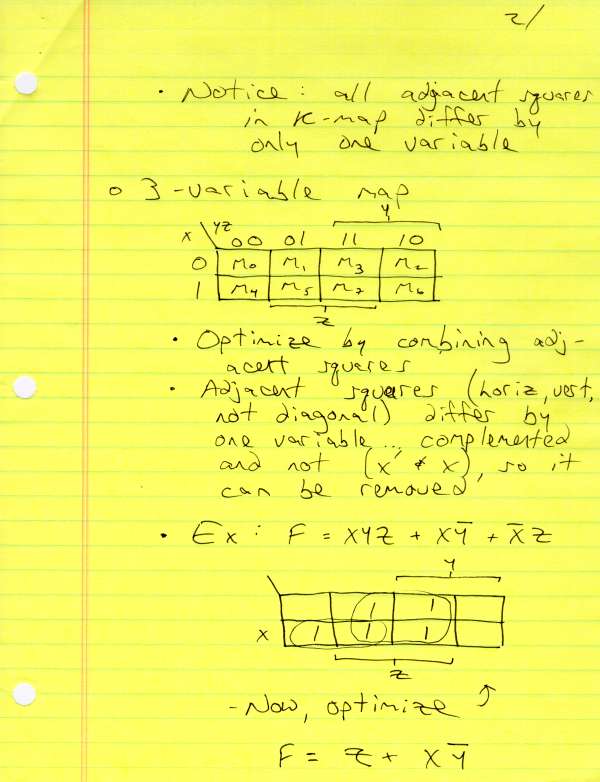

2-variable K-maps
![](page02_small.jpg)
|
3.

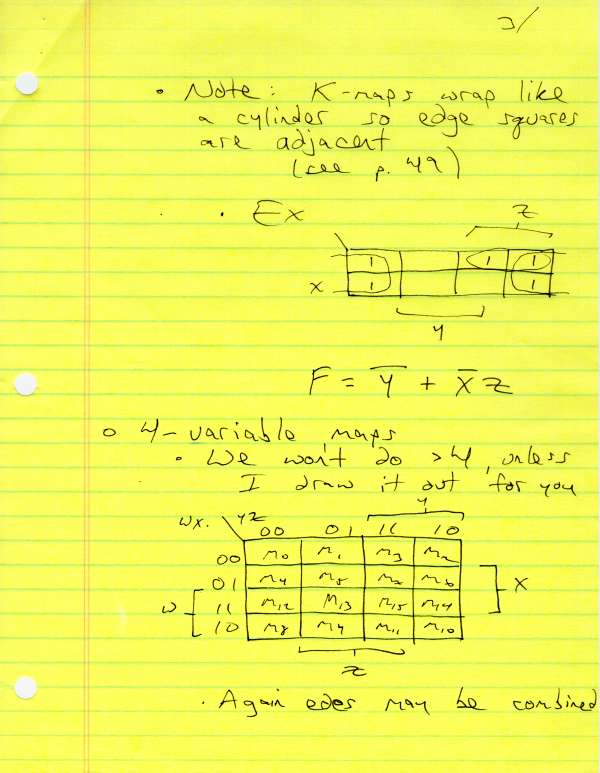

4-variable K-maps
![](page03_small.jpg)
|
4.

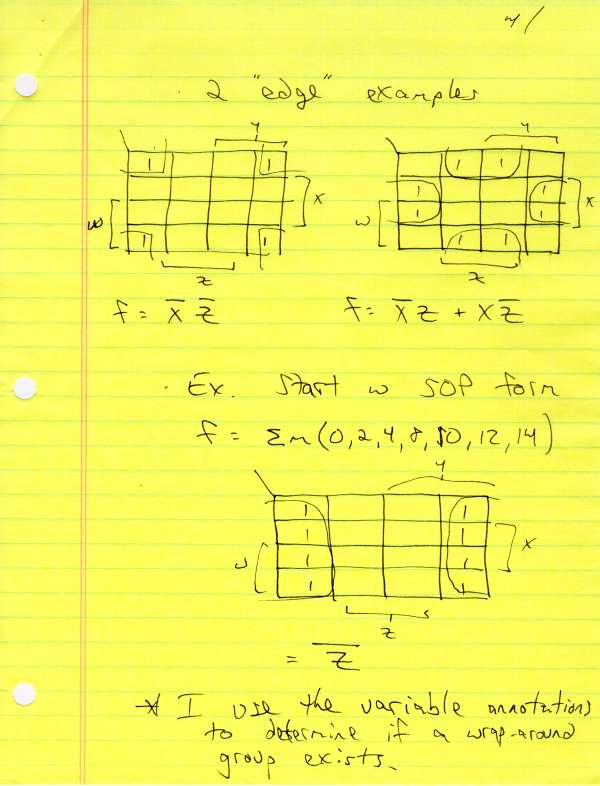

K-maps cont.
![](page04_small.jpg)
|
5.

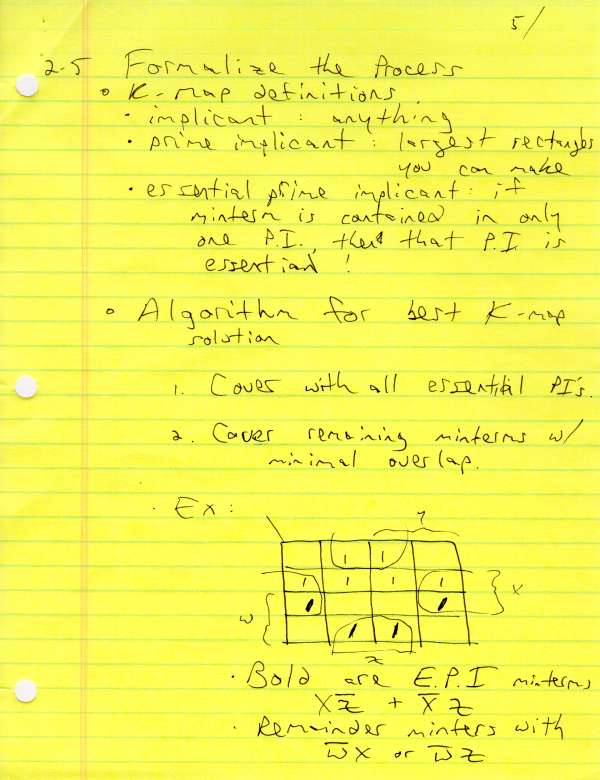

K-maps Process
![](page05_small.jpg)
|
6.

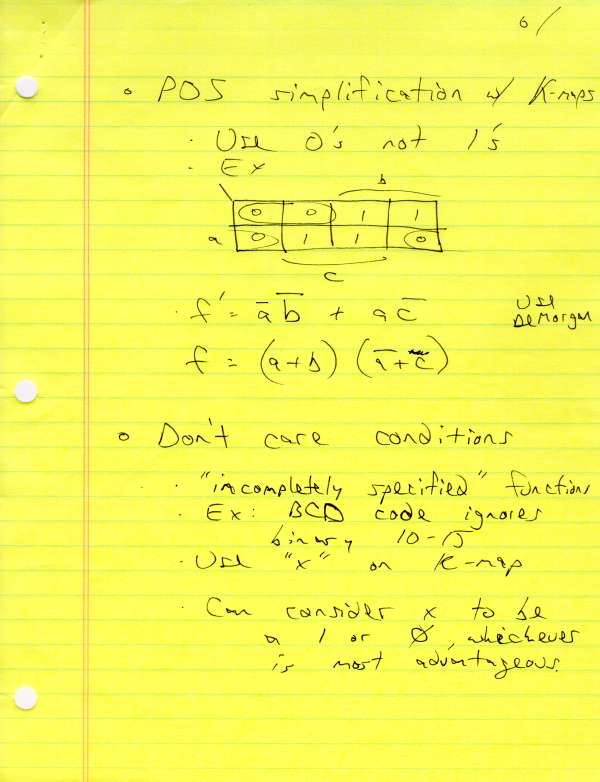

K-maps Process, cont
![](page06_small.jpg)
|
7.

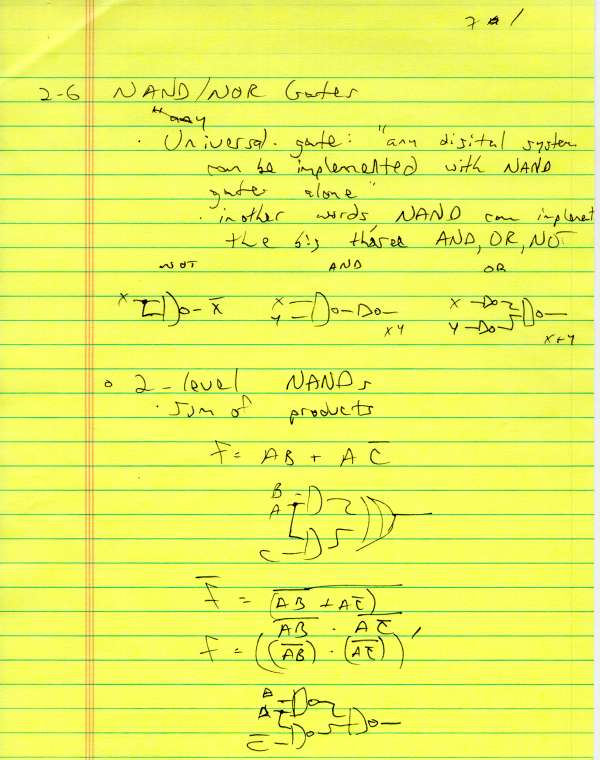

Nand/Nor gates
![](page07_small.jpg)
|
8.

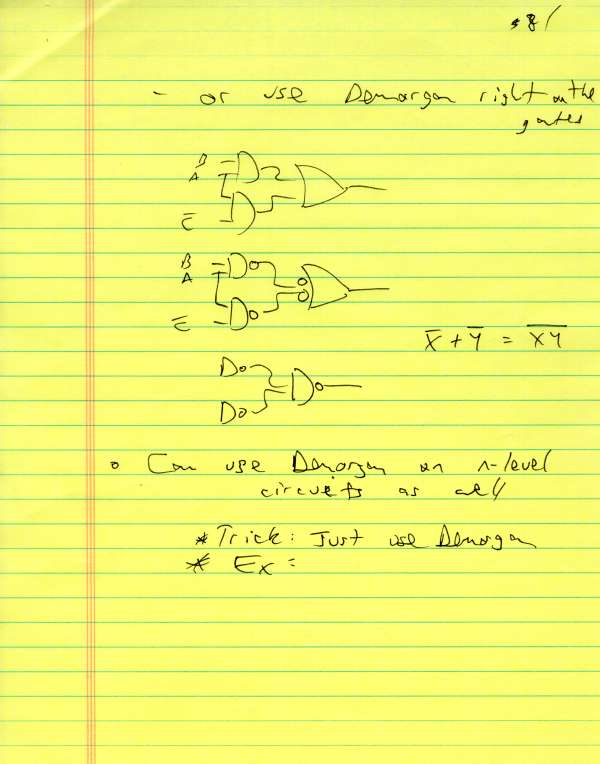

Nand/Nor, cont.
![](page08_small.jpg)
|
9.

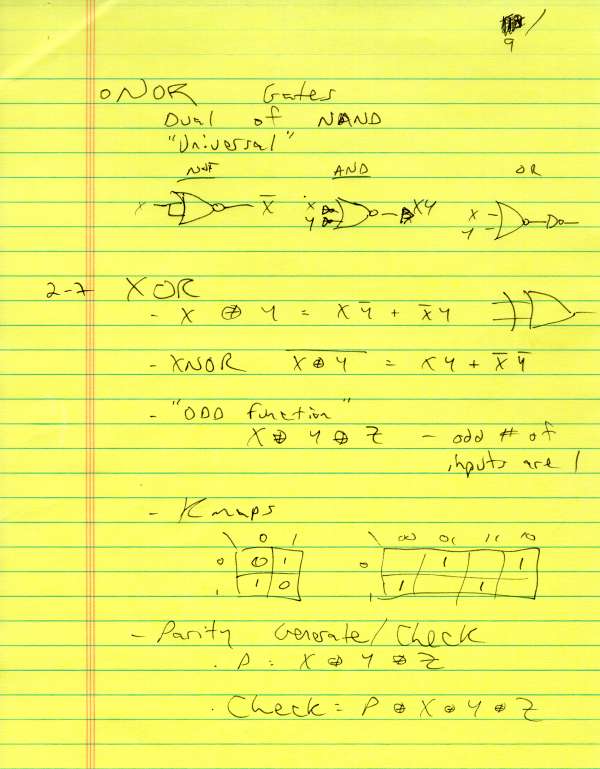

Xor gates
![](page09_small.jpg)
|
